Dufon Export India are leading Manufacturers of Microscopes, Microscopes Manufacturers, Microscopes for School Educational Lab in India, Microscopes Suppliers, Microscopes, Microscopes India, Microscopes Exporters, Microscopes Manufacturer and Lab Tender Supply Microscopes Specifications and Equipment list for school.

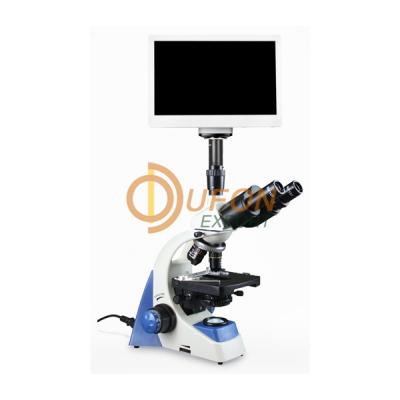

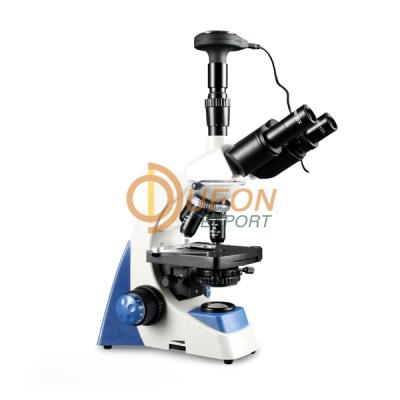

Lab Name: Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination

Suppliers Product Code: DUFONLABS103572 - (Trinocular Digital Microscope with LCD Touch Pad 5W LED Kohler Illumination)

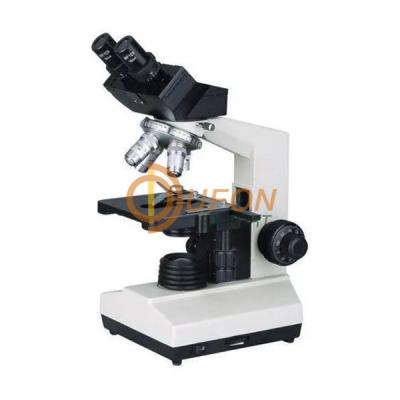

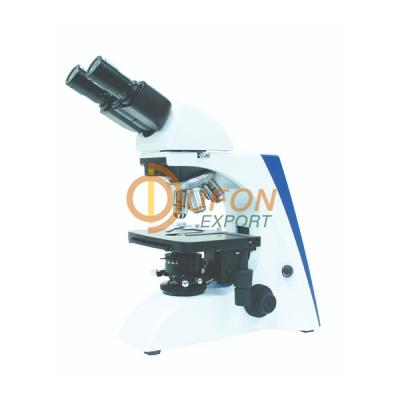

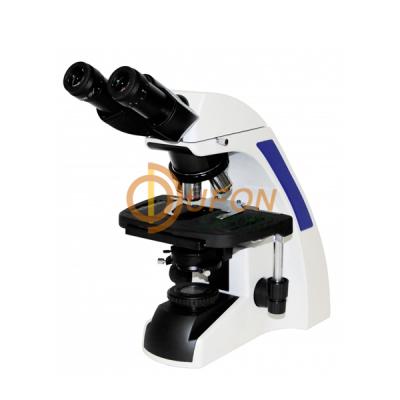

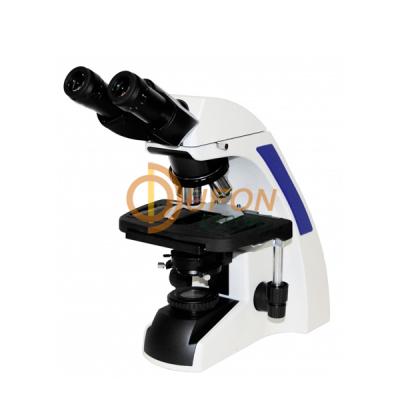

Lab Name: Advanced Infinity Corrected Binocular Microscope

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Wide field (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.



Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm corresponding to respective objectives.

5w LED for optimum illumination and contrast

With light intensity control

Design

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage

Optional Accessory

Dark field kit

Phase contrast kit

Polarizing kit

....

--> Suppliers Product Code: DUFONLABS108701 - (Advanced Infinity Corrected Binocular Microscope)

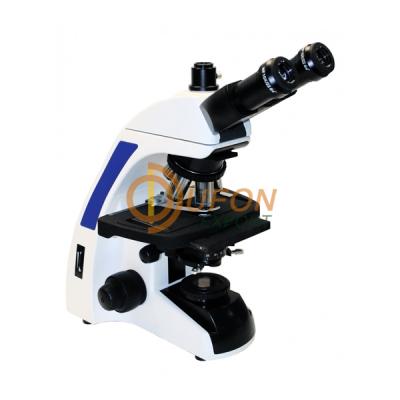

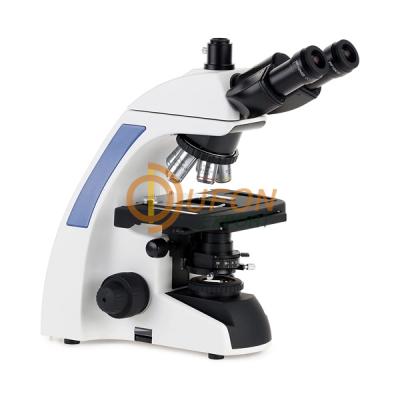

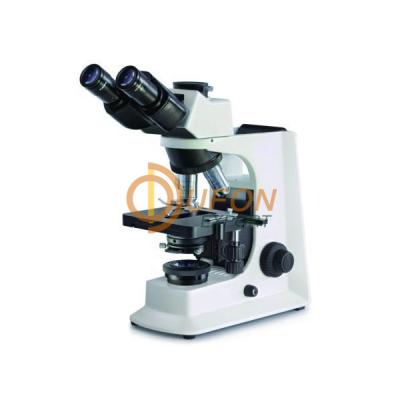

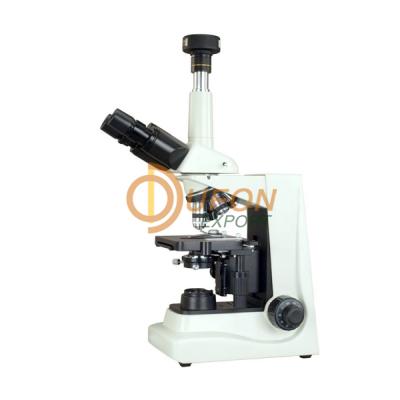

Lab Name: Advanced Infinity Corrected Trinocular Microscope

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Wide field (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.

Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.

5w LED for optimum illumination and contrast

With light intensity control

Imaging

Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera  and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen.

0.5x C-mount included

Other characters

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage

Optional Accessory

Dark field kit

Available (not included)

Phase contrast kit



Polarizing kit

....

--> Suppliers Product Code: DUFONLABS108703 - (Advanced Infinity Corrected Trinocular Microscope)

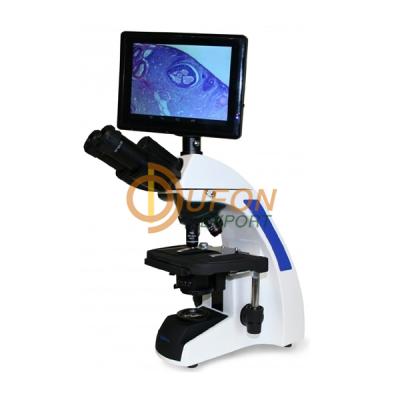

Lab Name: Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Wide field (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.



Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17 (Retractable)

Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17(Retractable)

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.

5w LED for optimum illumination and contrast (5w LED available but not included)

With light intensity control

Imaging

Trinocular phototube (50% vis, 50% doc) with 10MP digital eyepiece camera  and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen.

0.5x C-mount included

Other characters

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage

Optional Accessory

Dark field kit

Available (not included)

Phase contrast kit



Polarizing kit

Camera Main Features

8" Color LCD & Touch Screen 360° horizontal rotatable / 90° vertical rotatable

Free life-time software upgrade

2MP high resolution, 1024 x 786 display

Blue-tooth & Wi-Fi

CPU Dual-core 1.41GHz



Operating System Android 4.1.1



Memory: 1G (DDR3)



Storage: Internal 4 GB or External Mini SD Card



Windows, Mac, Linux compatible



Output Ports: 1x HDMI port; 1x USB 2.0; 1x Mini USB 2.0



Power Supply: Input: AC110v-220v; Output: DC 5v



0.35x Relay lens, external power adapters, HDMI cable

....

--> Suppliers Product Code: DUFONLABS108704 - (Advanced Infinity Corrected Digital Trinocular Microscope with LCD Touch Pad)

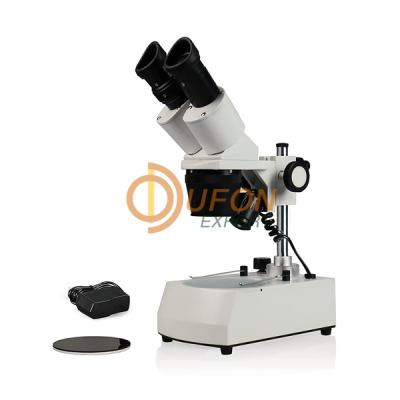

Lab Name: Cordless LED Binocular Stereo Microscope

Suppliers Product Code: DUFONLABS104688 - (Cordless LED Binocular Stereo Microscope)

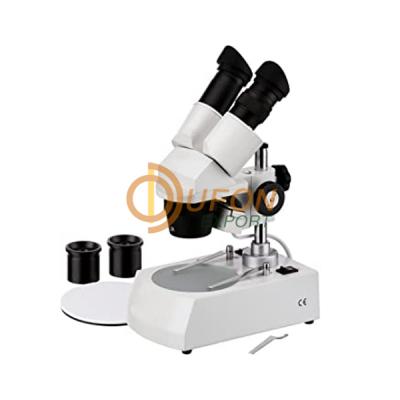

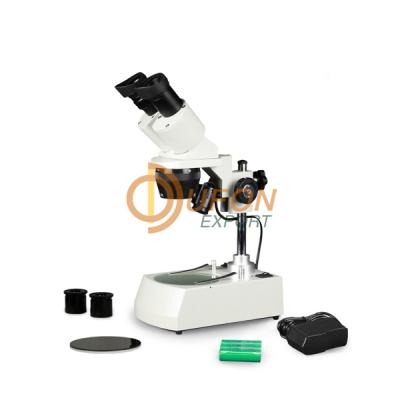

Lab Name: Binocular Stereo Microscope WF 10x and 20x Eyepieces

Suppliers Product Code: DUFONLABS108705 - (Binocular Stereo Microscope WF 10x and 20x Eyepieces)



Lab Name: Series Binocular Stereo Microscope

Suppliers Product Code: DUFONLABS108708 - (Series Binocular Stereo Microscope)

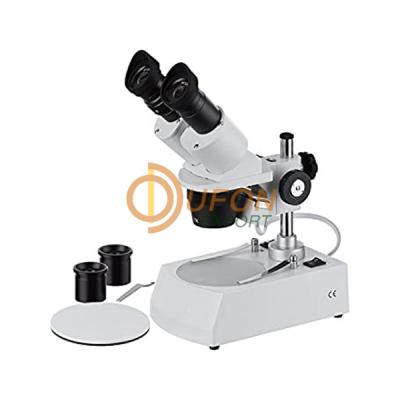

Lab Name: LED Top and Bottom Lights Binocular Stereo Microscope

Suppliers Product Code: DUFONLABS104717 - (LED Top and Bottom Lights Binocular Stereo Microscope)

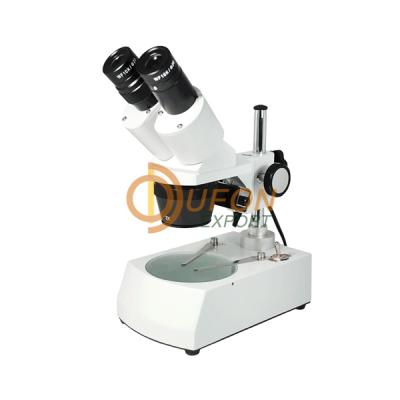

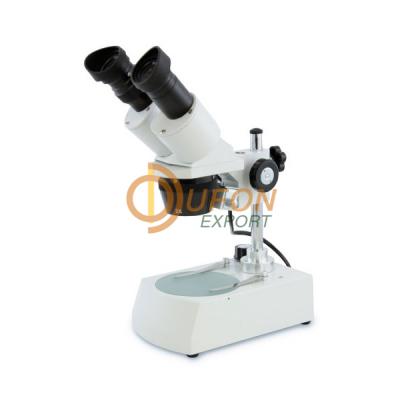

Lab Name: Binocular Stereo Microscope Frosted Glass Plate

Suppliers Product Code: DUFONLABS104750 - (Binocular Stereo Microscope Frosted Glass Plate)



Lab Name: Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective

Suppliers Product Code: DUFONLABS108711 - (Binocular Stereo Microscope Frosted Glass Plate 1x and 3x Objective)



Lab Name: Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective

Suppliers Product Code: DUFONLABS108712 - (Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective)

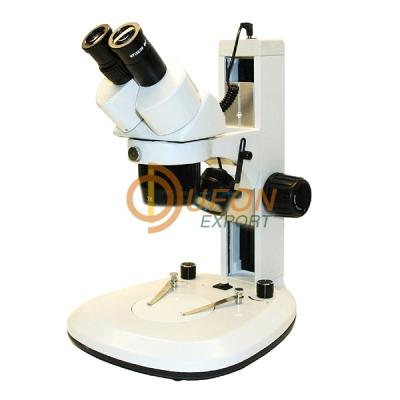

Lab Name: Dual Power LED Stereo Microscope with Pillar Stand

Suppliers Product Code: DUFONLABS108714 - (Dual Power LED Stereo Microscope with Pillar Stand)



Lab Name: Tri Power LED Stereo Microscope

Suppliers Product Code: DUFONLABS104777 - (Tri Power LED Stereo Microscope)



Lab Name: Cordless Rechargeable Dual Power LED Stereo Microscope

Suppliers Product Code: DUFONLABS108716 - (Cordless Rechargeable Dual Power LED Stereo Microscope)



Lab Name: Cordless Rechargeable Tri Power LED Stereo Microscope

Suppliers Product Code: DUFONLABS108717 - (Cordless Rechargeable Tri Power LED Stereo Microscope)

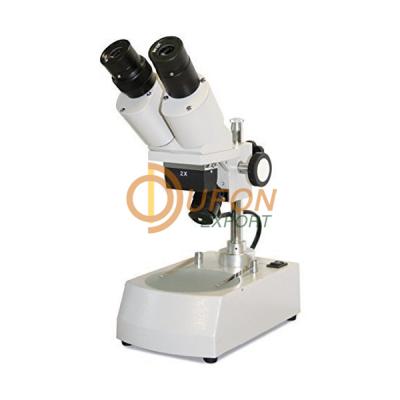

Lab Name: Dual Power Binocular Stereo Microscope 1X and 3X Objective

Suppliers Product Code: DUFONLABS108719 - (Dual Power Binocular Stereo Microscope 1X and 3X Objective)



Lab Name: Dual Power Binocular Stereo Microscope

Suppliers Product Code: DUFONLABS108720 - (Dual Power Binocular Stereo Microscope)



Lab Name: LED Illumination Dual Power Binocular Stereo Microscope

Suppliers Product Code: DUFONLABS104795 - (LED Illumination Dual Power Binocular Stereo Microscope)

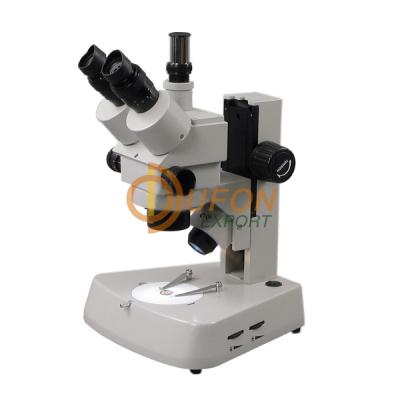

Lab Name: Dual Power Trinocular Stereo Microscope

Suppliers Product Code: DUFONLABS108724 - (Dual Power Trinocular Stereo Microscope)



Lab Name: Dual Power Binocular Stereo Microscope 1X and 2X Objective

Suppliers Product Code: DUFONLABS104817 - (Dual Power Binocular Stereo Microscope 1X and 2X Objective)
