Product Code: DUFONEP703924 - (Single Cylinder Two Stroke Petrol Engine Test Rig)
Single Cylinder Two Stroke Petrol Engine Test Rig
Three main components from main parts of the test rig.
Welded steel base plate, complete with Mechanical Brake or A.C. Alternator or D.C. Generator or Eddy Current Dynamo meter, Drive coupling and with safety guard, anti vibration mounting.
Resistance loading (Resistance bank) with selector switches to load the engine from no load to full load (Only for A.C. Alternator & D.C. Generator) Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature indicator. ....
Product Code: DUFONEP703904 - (Single Cylinder Four Stroke Petrol Engine Test Rig)
Single Cylinder Four Stroke Petrol Engine Test Rig
Mechanical Brake (Belt brake) Dynamo meter arrangement with a brake drum fitted on the Engine shaft and provided with cooling water arrangement, spring balance.
A set of dead weights in kg units.
AC Alternator of matching capacity to load the engine up to 3 HP at 3600 RPM along with Resistance loading arrangement provided with selector switches.
DC Generator of matching capacity to load the engine up to 3 HP at 3600 RPM along with Resistance loading arrangement provided with selector switches.
Eddy current dynamo meter of matching capacity to load the engine up to 3 HP at 3600 RPM. ....
Product Code: DUFONEP703900 - (Four Stroke Four Cylinder Petrol Engine Test Rig With Morse Test)
Four Stroke Four Cylinder Petrol Engine Test Rig With Morse Test
Two main components from main parts of the test rig.
Welded steel base plate, complete with Dynamo meter, Drive shaft with safety guard, engine starting battery of 12 V capacity and cooling water arrangement.
Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature and speed indicator. ....
Product Code: DUFONEP703898 - (Multi Cylinder Four Stroke Petrol Engine Test Rig)
Multi Cylinder Four Stroke Petrol Engine Test Rig
The test rig is designed to provide self-contained facility for teaching Internal Combustion (spark Ignition) engine principles.
The equipment is instrumented so that the following experiments could be performed.
Bhp Measurement
Ihp Measurement (By Morse Test Arrangement)
Fuel Consumption Measuement
Air Intake Measurement
Measurement Of Heat Rejected To Water Jacket
Heat Balance Test....
Product Code: DUFONEP703894 - (Variable Compression Ratio Engine Test Rig)
Variable Compression Ratio Engine Test Rig
Two main components from main parts of the test rig.
Welded steel base plate, complete with Rope Brake Dynamo meter/ A.C. DC Generator/Eddy Current Dynamo meter provided with cooling water arrangement.
Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature and speed indicator.
The test rig is designed to provide self-contained facility for teaching Compression Ignition engine principles.
The equipment is instrumented so that the following experiments could be performed.
Bhp Measurement
Brake Thermal Efficiency
Air Intake Measurement....
Product Code: DUFONEP703891 - (Single Cylinder Four Stroke Diesel Engine Test Rig)
Single Cylinder Four Stroke Diesel Engine Test Rig
Two main components from main parts of the test rig.
Welded steel base plate, complete with Rope Brake Dynamo meter provided with cooling water arrangement.
Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature and speed indicator.
The test rig is designed to provide self-contained facility for teaching Compression Ignition engine principles.
The equipment is instrumented so that the following experiments could be performed.
Bhp Measurement
Brake Thermal Efficiency
Fuel Consumption Measuement
Air Intake Measurement....
Product Code: DUFONEP704070 - (Two Cylinder Four Stroke Diesel Engine Test Rig)
Two Cylinder Four Stroke Diesel Engine Test Rig
The test rig is designed to provide self-contained facility for teaching Compression Ignition engine principles.
The equipment is instrumented so that the following experiments could be performed.
Bhp Measurement
Brake Thermal Efficiency
Fuel Consumption Measuement
Air Intake Measurement
Measurement Of Heat Rejected To Water Jacket
Description
Two/Three main components from main parts of the test rig.
Welded steel base plate, complete with A.C. Alternator/Mechanical Brake/ Hydraulic Dynamometer/ Eddy Current Dynamometer, Drive shaft with safe guard and anti vibration mounting.
Resistance loading (Resistance bank) with selector switches to load the engine from no load to full load (as applicable) Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature and speed indicator.....

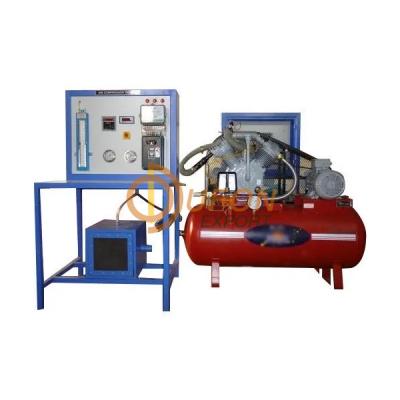

Product Code: DUFONEP703886 - (Air Compressor Test Rig)
Air Compressor Test Rig
Two Stage, Twin Cylinder air compressor-3 HP with a displacement capacity of about 300 LPM and to work against maximum pressure 12 Kg/Cm2 The Unit is mounted on a storage tank.
Controls:-
The Unit is supplied with pressure switch, suction filter safety valve, pressure gauge, water drain valve air delivery valve etc.
Air Intake Measurement:-
An orifice tank with orifice plate, manometer with pressure tapings are provided to measure the volume of air sucked by the compressor.
Electric motor:-
3 HP/3 Phase electric motor
Instrumentation:-
Digital temperature indicator to measure suction and delivery side temperature of the compressor.
Pressure gauges to measure stage pressure.....

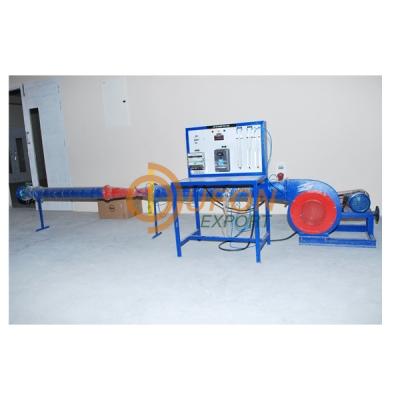

Product Code: DUFONEP703884 - (Air Blower Test Rig)
Air Blower Test Rig
An experimental Centrifugal type air Blower suitable for experiments.
It consists of interchangeable impellers of backward, radial and forward curved vanes, so that the effect of different types of balding could be well demonstrated. The approximate discharge of air is 30 cubic meter per minute at a pressure of 25 cm of water column.
Discharge measurement:-
One Orifice meter and a differential manometer of 1.0 m height to measure the discharge.
Pressure Measurement:-
Two number of pitot tubes mounted at the inlet duct and outlet duct to determine the total pressure developed at inlet and outlet of the blower.
Motor:-
The Blower is coupled to an induction motor of 3HP.
The Blower is coupled with a Dynamo meter type motor with a stepped pulley arrangement to run at three different speeds, balance arm, dial type spring balance with a large size dial etc., to determine the input power of the blower.....
Product Code: DUFONEP703879 - (Three Cylinder Four Stroke Petrol Engine Test Rig With Morse Test)
Three Cylinder Four Stroke Petrol Engine Test Rig With Morse Test
The setup consists of three cylinder, four stroke, petrol engine connected to dynamo meter for engine loading.
The setup has stand-alone type independent panel box consisting of air box, fuel tank, manometer, fuel measuring unit.
Engine jacket cooling water inlet, outlet and calorimeter temperature is displayed on temperature indicator.
Flowmeters are provided for cooling water and calorimeter flow measurement.
Provision is also made for conducting Morse test....
Product Code: DUFONEP703875 - (Main Cylinder Air Cooled)
Main Cylinder Air Cooled
The test rig is designed to provide self-contained facility for teaching Compression Ignition engine principles.
The equipment is instrumented so that the following experiments could be performed.
Bhp Measurement
Brake Thermal Efficiency
Air Intake Measurement
Engine:-
Single Cylinder Four Stroke Water Cooled Vertical Diesel Engine to develop 5 HP @ 1500 RPM. (Make: Kirloskar)
Services:-
Electrical supply of 230 V, Single Phase, 50 Hz AC & external cooling water supply.....
Product Code: DUFONEP703871 - (Variable Speed Air Blower Test Rig)
Variable Speed Air Blower Test Rig
An experimental Centrifugal type air Blower suitable for experiments.
It consists of interchangeable impellers of backward, radial and forward curved vanes, so that the effect of different types of blading could be well demonstrated.
The approximate discharge of air is 30 cubic meter per minute at a pressure of 25 cm of water column.
Discharge measurement
One Orifice meter and a differential manometer of 1.0 m height to measure the discharge.
Pressure Measurment
Two number of pitot tubes mounted at the inlet duct and outlet duct to determine the total pressure developed at inlet and outlet of the blower.
Motor
The Blower is coupled to an induction motor of 3 HP.
The Blower is coupled with a Dynamometer type motor with a stepped pulley arrangement to run at three different speeds, balance arm, dial type spring balance with a large size dial etc., to determine the input power of the blower.
Instrumentaion
Digital temperature indicator to measure suction and delivery side temperature of the blower.
Pressure gauges to measure stage pressure.....

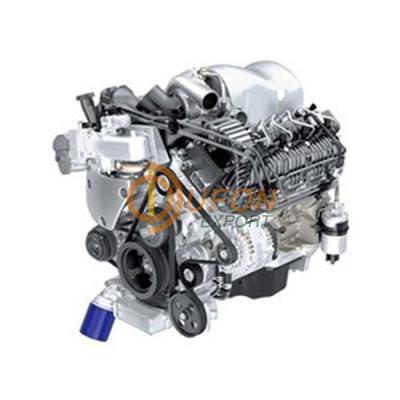

Product Code: DUFONEP709847 - (Automotive Diesel Engine)
Automotive Diesel Engine....
Product Code: DUFONEP709848 - (Cylinder Air Compressor Test Rig)
Cylinder Air Compressor Test Rig
Two Stage, Twin Cylinder air compressor-3 HP with a displacement capacity of about 300 LPM and to work against maximum pressure 12 Kg/Cm2 The Unit is mounted on a storage tank.
Controls:-
The Unit is supplied with pressure switch, suction filter safety valve, pressure gauge, water drain valve air delivery valve etc.
Air Intake Measurement:-
An orifice tank with orifice plate, manometer with pressure tapings are provided to measure the volume of air sucked by the compressor.
Electric motor:-
3 HP/3 Phase electric motor
Instrumentaion:-
Digital temperature indicator to measure suction and delivery side temperature of the compressor.
Pressure gauges to measure stage pressure.....
Product Code: DUFONEP709849 - (Computer Based Petrol Engine)
Computer Based Petrol Engine....
