Product Code: DUFONEP703516 - (Microprocessor Dissolution Test Apparatus)

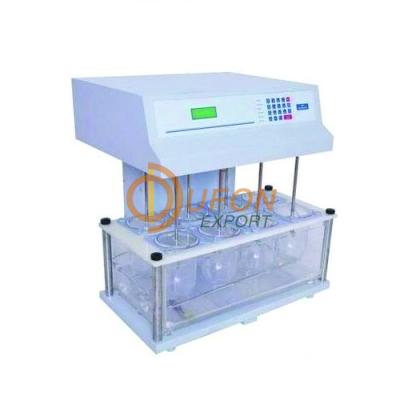

Microprocessor Dissolution Test Apparatus
Features:-
8 Station
6 Station
Complies with USP, IP specifications
Extremely Useful for Pharmaceutical Labs
Highly Accurate and Easy to Operate
Programmable Stirrer Speed Control i.e. (1000025 - 200 RPM)
20 x 4 Line Alphanumeric LCD with Backlit
19 Soft Touch Membrane Type Keys
Three Programming Modes i.e. Routine, Sustain and Control
20 Independent Programmable Setups for Routine and Sustain Mode with
Storage Facility
200 Samples Storage Facility
Printer Attachment Facility
Audio Visual Indicators for System Status
Easy to Empty & Clean the Water bath with Bottom Drainage
Continuation of Last Sample Run in case of Power Failure
Microprocessor Dissolution Test Apparatus is a solid state instrument
designed for the determination of active drug ingredient in any pharmaceutical
formulation, tablet or capsule as per IP and USP specifications.
This apparatus evaluates adequate bio-availability and provides necessary
information to formulate in the development of therapeutically optimum dosage
forms.
The instrument is designed and manufactured for pharmaceutical industries.
It is used in quality control and R & D to determine compliance with
the dissolution requirement of the Tablet and Capsule as per USP/IP standards.
Instrument uses the latest microprocessor technology and advanced engineering
techniques so as to give enhanced accuracy and reproducibility.
The system has user friendly prompts, which guide you throughout the
measurement process.
System is equipped with 4 line alphanumeric LCD display with backlit and 19
soft touch membrane type keys that provides a convenient interface for entering
the data.
Independent stirrer and platform keys on the front panel allow the user to
easily start/stop stirrer movement or displacement of platform in the required
direction at any time.
The instrument has the storage facility for 200 samples.
The samples being analyzed are automatically stored in the memory in
different batch and sample numbers.
The system has three programming modes i.e. Routine, Sustain and Control
mode.
It has the facility for setting up 20 different test methods using Routine
and Sustain modes which are retained in the memory even when the power is
switched OFF.
Provision has also been made for attachment of any dot matrix printer with
centronics interface so that any of the stored setups/results can be
printed.
The unit is provided with dissolution vessel with cover, having necessary
arrangement to hold temperature sensor and the same is placed in the sturdy,
acrylic water bath.
The large spread out stainless steel heater ensures perfectly uniform
heating.
The instrument has dual channel temperature system with sensors to monitor
the test temperature of dissolution vessel as well as that of the water bath.
The motorized platform's (stirrer unit) up/down movement of the instrument
improves the accessibility for sampling. Stirrer speed is accurately
controlled and maintained at +1 rpm by microcontroller as per IP, USP
specifications.
The elapsed time for the current ongoing test is retained in the instruments
memory.
In case of power failure during the run mode, when the instrument is
switched
On again, the user has the option to run the test from the point of the
power failure.
Specifications:-
General
Stations
8 Stations
6 Stations
Display
20 x 4 Line Alphanumeric LCD display with Backlit
Keyboard
19 soft touch membrane keys
LED'
6 LED's, 3 LED's for Test status
like Run, Alarm, End and 2 LED's for Platform up/down status and one for
heater ON/OFF status.
Prog. Mode
Routine, Sustain and Control mode. Facility for 20 different test setups
available in Routine and Sustain mode.
Printer
Provision for the
attachment of dot-matrix printer with centronics parallel port interface
available.
Stirrer
Speed
25 - 200 RPM, + 1
RPM
Resolution
1 RPM
Accuracy
+ 1 RPM
Temperature
Range
30 - 50 oC
Accuracy
+ 1 oC
Temp. Control
Microprocessor Based
using PT100/Semiconductor Sensor
Sampling
Reaction Vessel
1000 ml jars with
stirrer pedals and baskets
Heater
1 KW
Power
230 V ± 10%, 50 Hz. AC
Accessories
Main Unit with Acrylic Tank and Rectangular Cover Plate and Water Bath
Temperature Sensor (T1)
External Temperature Sensor (T2) for Vessel
Reaction Vessel capacity 1000 ml
(8 Nos. in Model - 1918 and (6 + 1) Nos. in Model - 1916)
Round Acrylic Cover Plate with Hole and a large slit
(8 Nos. in Model - 1918 & 6 Nos. in Model - 1916)
S.S. Paddle, S.S Wire Mesh Basket
(8 Nos. in Model - 1918 & 6 Nos. in Model - 1916)
Glass pipettes with rubber bellows
Mains Lead
Instruction Manual
Dust Cover
....
