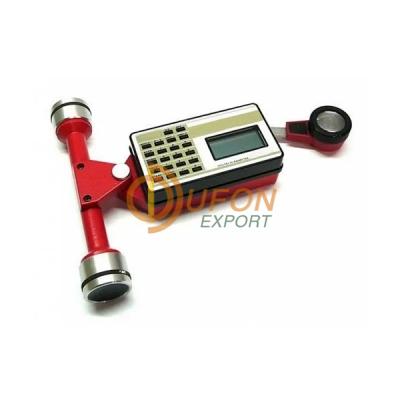

Dufon Digital Planimeter

Dufon Digital Planimeter

Placom Digital Planimeter KP-90N-Series with the most advanced functions and perfect reliability. The most standard model of "KoizuiDLAB Placom" N-Series has made the excitingly highest attainment in the history of Placom Digital Planimeter KP-90N ever made. Measuring capacity is remarkably enlarged. Measuring by 6-digit pulse count enables to measure 100 times larger accumulative area than ordinary planimeters. Easy calculations of Cumulative and Average Value Measurement.

Type    Roller Type    Polar Type
    With Computing Function    Single Function    With Computing Function    Single Function
Display    Liquid Crystal, 8-digit Figures
    13 Symbols    6 Symbols    13 Symbols    6 Symbols
Symbol    Batt-E, SCALE
Memo, Hold
cm2, m2, km2, in2, ft2, acre etc.    Batt-E
Memo, Hold
cm2, in2, etc.    Batt-E, SCALE
Memo, Hold
cm2, m2, km2, in2, ft2, acre etc.    Batt-E
Memo, Hold
cm2, in2, etc.
Converting Function    Unit and Scale value    Unit(in2, cm2)    Unit and Scale value    Unit(in2, cm2)
Accumulated Measuring Value    Maximum 10m2(Scale 1:1)
Measuring Range    Maximum vertical width: 325mm
Horizntal roller rotating length: 30m    Maximum, with the pole put outside the pattern: 300mm in diameter
Maximum, with the pole put inside the pattern: 800mm in diameter
Accuracy    Within +/-0.2%(Within +/-2/1000pluses)
Power Supply    •    Built-in NiCd Battery(rechargeable through AC Adapter)
•    AC Adapter 100-240V (Auto-power-off function is provided.)
Operating Duration    Approx. 30 hours of continuous operation
Battery Charging Time    Approx. 15 hours
Main Unit Weight    750g    780g
Accessories    Supplied AC Adapter and Plastic Case
